Description
Product Overview

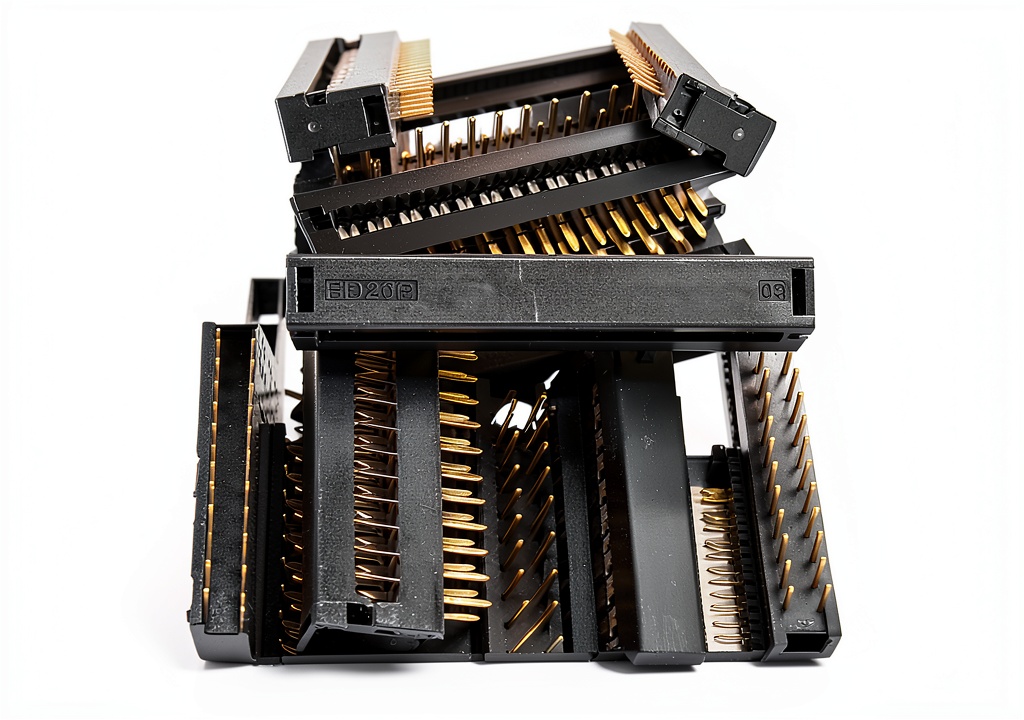

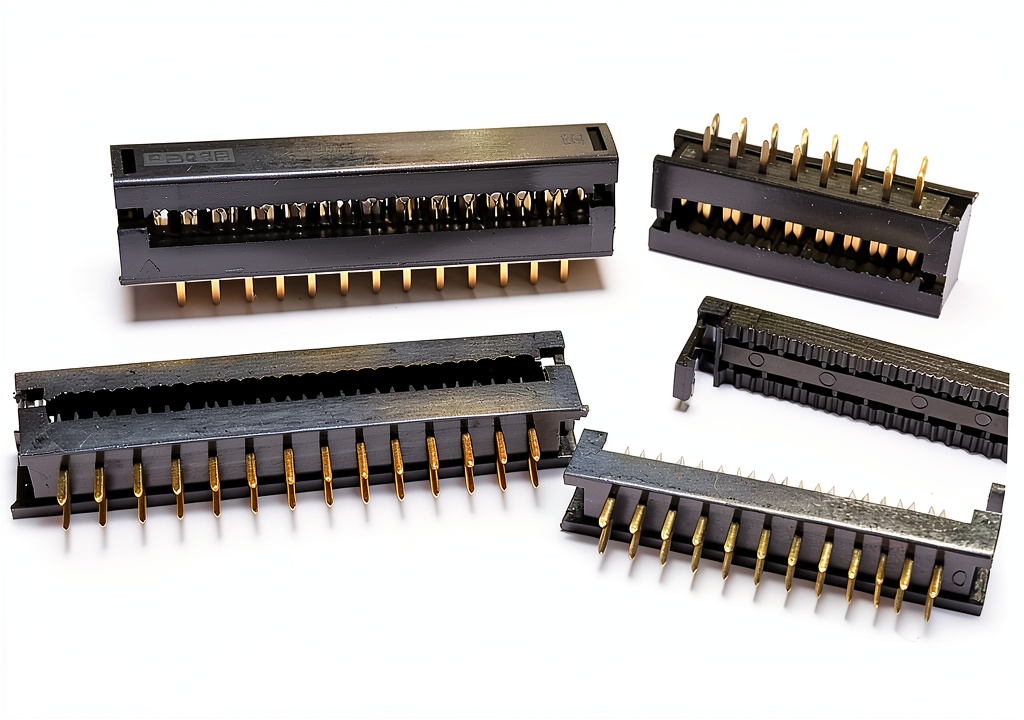

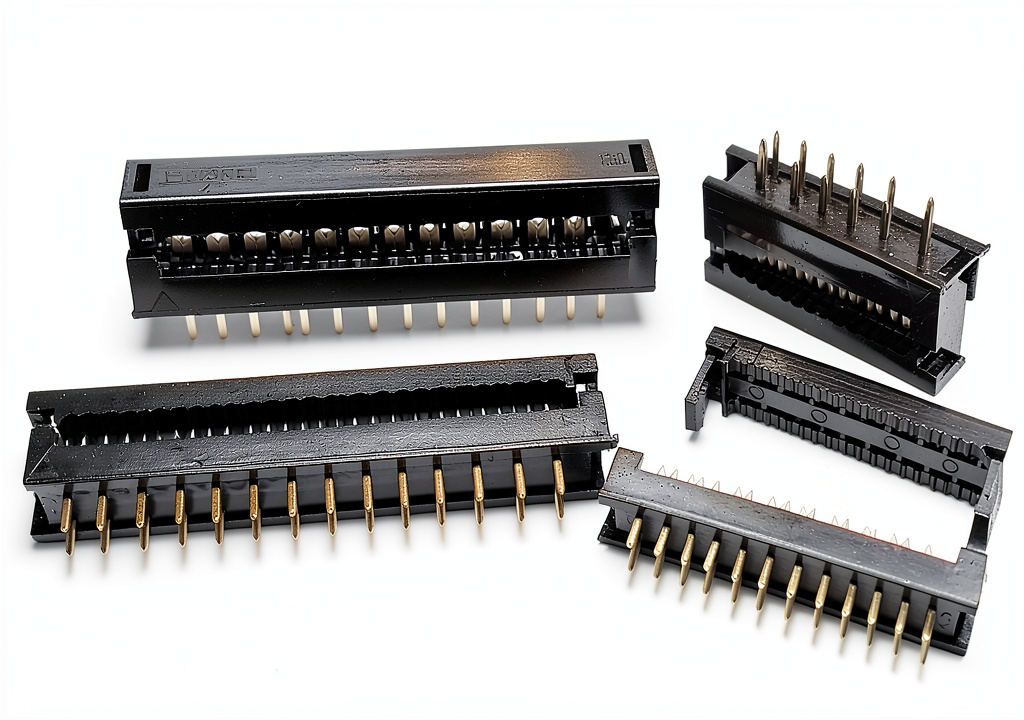

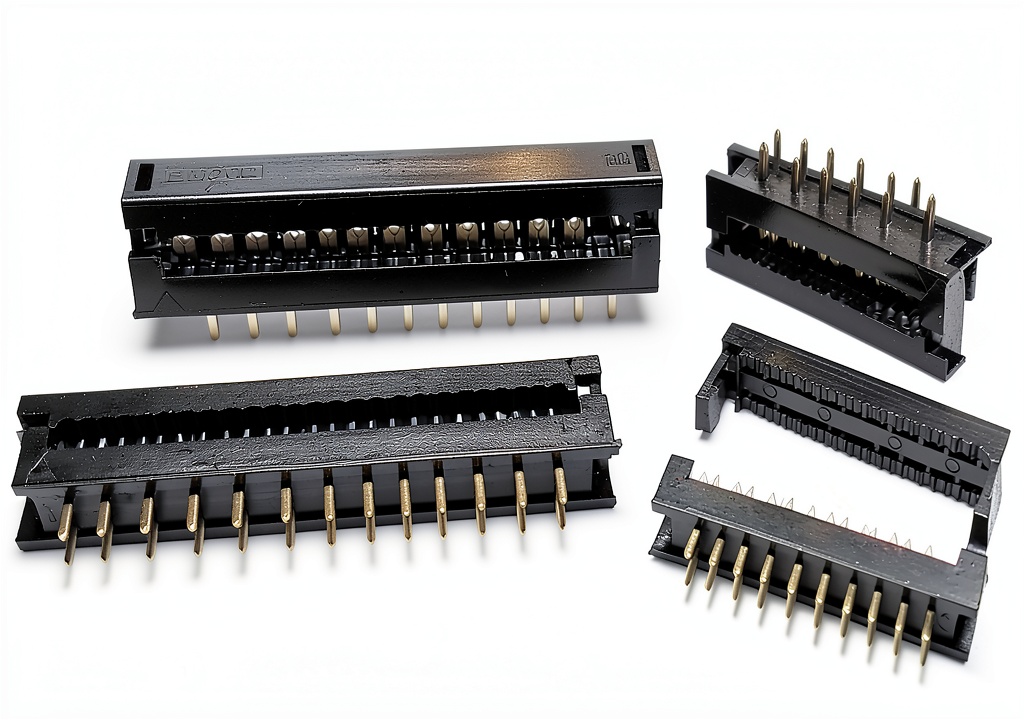

The IDC 2X13 26‑Pin 2.54mm Pitch Male Dual‑Row Plug is engineered to deliver a secure, low‑resistance connection for flat ribbon cable assemblies. Each plug features 26 precisely spaced pins arranged in two rows of 13, providing a compact footprint while maintaining robust mechanical stability. The pins are fabricated from high‑conductivity copper alloy, plated with a tin finish to resist corrosion and ensure consistent electrical performance over time. The 2.54mm (0.1″) pitch matches industry‑standard flat cable specifications, allowing seamless integration with a wide range of devices, from consumer electronics to industrial control systems.
Designed with a clear pin‑1 triangle indicator, the plugs simplify orientation during installation, reducing the risk of misalignment and potential damage to the cable or connector. The housing is molded from a flame‑retardant, impact‑resistant polymer that meets UL94 V‑0 standards, offering protection against fire hazards while withstanding the rigors of repeated insertion and removal cycles. The 10‑pack configuration provides ample inventory for batch production, prototyping runs, or maintenance stock, ensuring that you never run short of the essential components needed for reliable system assembly.
Usage
These IDC plugs are ideally suited for a variety of applications where flat ribbon cables are employed. In laboratory environments, they enable rapid prototyping of data acquisition systems, allowing engineers to connect sensor arrays, signal conditioning modules, and microcontroller boards with minimal effort. In manufacturing settings, the plugs facilitate the wiring of control panels, PLC interfaces, and machine‑to‑machine communication links, delivering a clean, organized cable management solution that reduces clutter and improves serviceability.
Field technicians appreciate the ease of use when performing on‑site repairs or upgrades. The plugs can be quickly mated to FD‑26P socket connectors, which are commonly found on equipment such as CNC machines, medical imaging devices, and aerospace instrumentation. Their durable construction ensures that even in harsh environments—exposed to vibration, temperature fluctuations, or moisture—the connection remains stable, minimizing downtime and maintenance costs.
For hobbyists and makers, the plugs open up possibilities for custom controller projects, robotics, and DIY audio equipment. The standard 2.54mm pitch aligns with popular development platforms like Arduino, Raspberry Pi, and BeagleBone, making it straightforward to integrate flat ribbon cables into breadboard prototypes or printed circuit board (PCB) designs.
Why Choose Us
Choosing the Marvic IDC 2X13 plug series means selecting a product backed by rigorous quality assurance processes. Each batch undergoes electrical continuity testing, dimensional inspection, and mechanical endurance verification to guarantee that every plug meets or exceeds the specifications outlined in the product datasheet. Our manufacturing partners adhere to ISO 9001 standards, ensuring traceability and consistency across all production runs.
Beyond the technical specifications, Marvic provides comprehensive customer support. Our technical assistance team is available to help with installation guidance, compatibility questions, and troubleshooting. Should you encounter any issues, our responsive after‑sales service offers replacement parts and warranty support, reinforcing our commitment to long‑term customer satisfaction.
Environmental responsibility is also a core value. The polymer housing is RoHS‑compliant, free from hazardous substances such as lead, mercury, and cadmium. By selecting our product, you contribute to a greener supply chain while still receiving a high‑performance connector that does not compromise on reliability.
Key Features
- Durable copper alloy pins with tin plating ensure long‑term electrical reliability.
- Standard 2.54 mm pitch matches industry‑wide flat ribbon cable specifications for easy integration.
- Clear pin‑1 triangle marking simplifies correct orientation and reduces installation errors.
- Flame‑retardant, impact‑resistant polymer housing meets UL94 V‑0 safety standards.
- Comprehensive technical support and warranty service provide peace of mind for every purchase.
FAQ
What type of cable can I use with this IDC plug?
The plug is designed for flat ribbon cables with a 2.54 mm (0.1″) pitch. It works with any cable that conforms to this standard, including multi‑core ribbon assemblies used in data, power, and signal applications.
Is the plug compatible with both single‑ended and differential signaling?
Yes. The 26‑pin configuration allows you to assign pins for single‑ended signals, differential pairs, or power distribution, giving you flexibility to design the wiring scheme that best fits your system requirements.
How many insertion cycles can the plug withstand?
Our plugs are tested for a minimum of 500 insertion and removal cycles without degradation of contact performance, ensuring reliable operation throughout the product’s lifecycle.
Do you offer bulk pricing for larger quantities?
Yes. Marvic provides tiered pricing for bulk orders. Contact our sales team for a customized quote based on the volume you require.
What warranty does this product carry?
The IDC 2X13 plug is covered by a one‑year limited warranty against manufacturing defects. Should any issues arise, we will replace the affected units at no additional cost.
