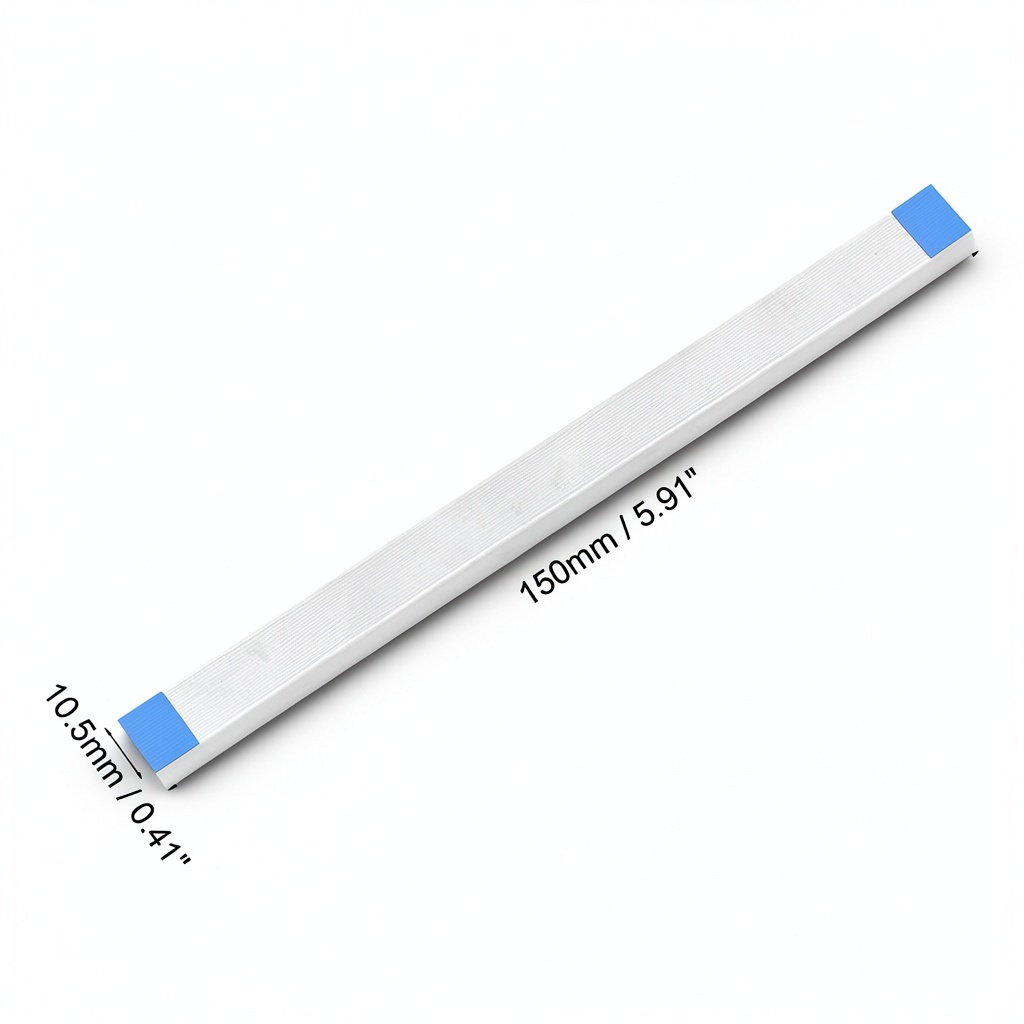

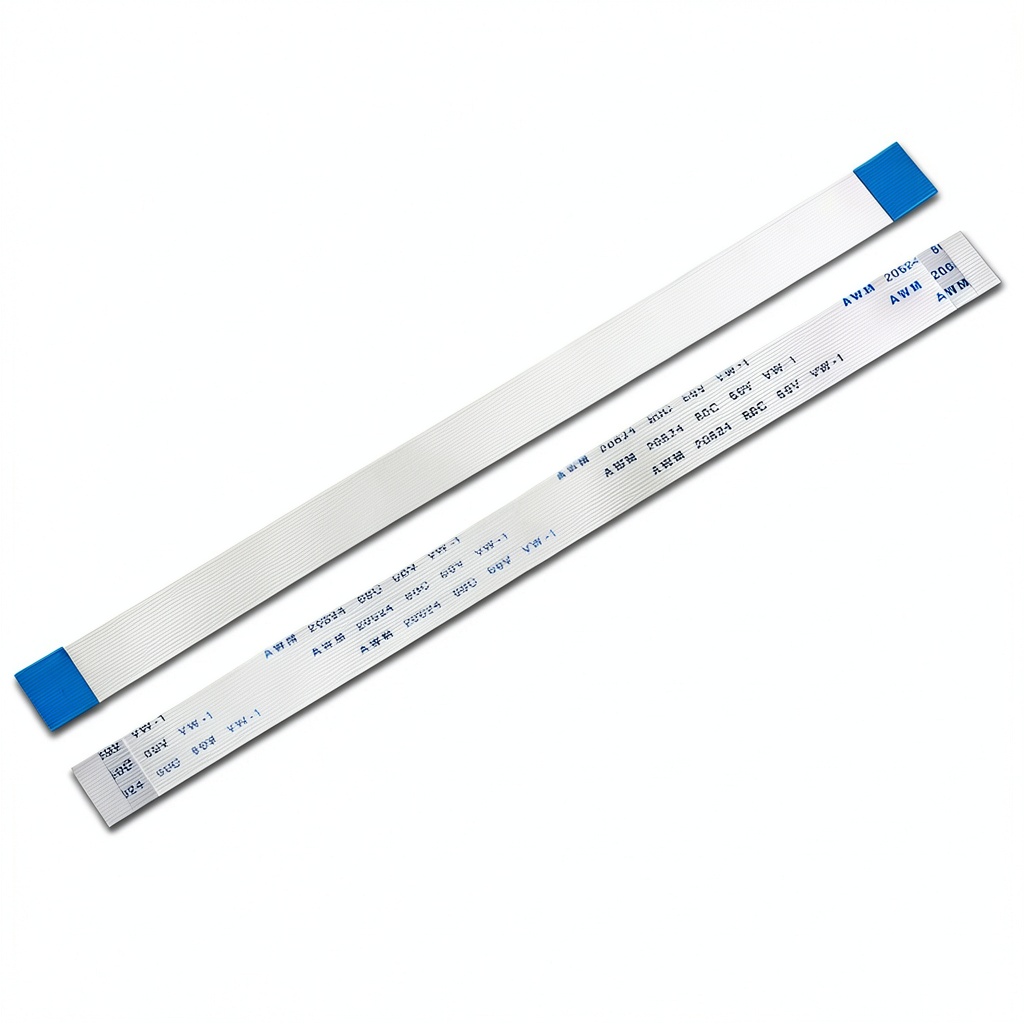

The uxcell 20‑pin Flexible Flat Cable (FFC) is engineered for high‑density electronic assemblies where space is at a premium. With a precise 0.5 mm pitch and a total length of 150 mm, this ribbon cable provides a reliable pathway for data and power signals across a variety of consumer and industrial devices. The cable construction features a thin, flexible polymer film substrate that is both lightweight and resistant to bending fatigue, allowing it to conform to tight routing channels inside LCD televisions, DVD players, laptops, and other compact equipment.

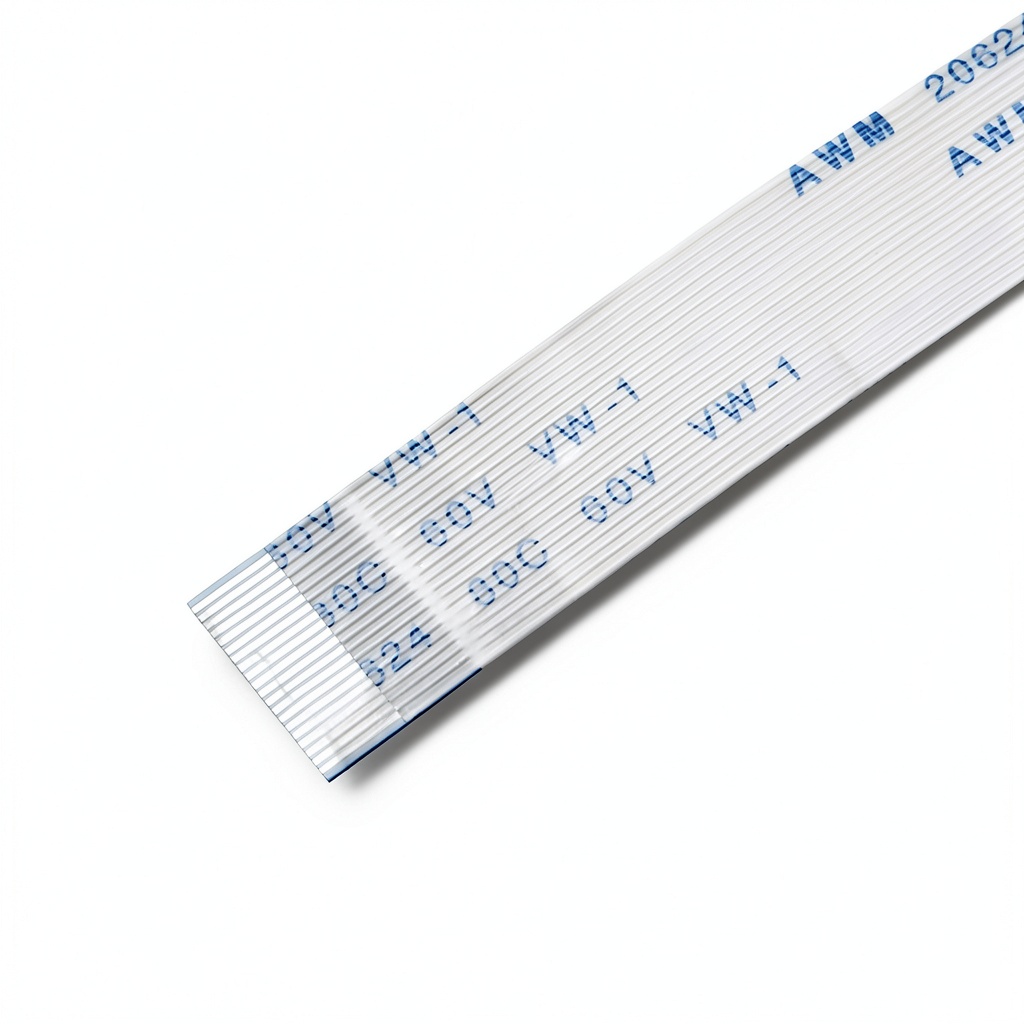

Each of the twenty copper conductors is uniformly spaced and bonded to one side of the film, delivering consistent electrical performance and minimizing crosstalk. The dielectric strength of 60 V and heat resistance up to 80 °C ensure that the cable can operate safely under typical operating conditions without degradation. The ends of the cable are reinforced with a molded stiffener, a design element that simplifies insertion into FFC connectors while protecting the delicate conductors from damage during handling.
Designed as an A‑type (pin on the same side) configuration, the cable is compatible with standard 0.5 mm pitch FFC/FFC connectors found in a wide range of devices. The ultra‑thin profile, combined with the reinforced ends, makes it an ideal solution for high‑density applications such as notebook computers, smartphones, digital cameras, and other portable electronics where every millimeter of board space counts.
Beyond its technical specifications, the uxcell cable offers practical benefits for both manufacturers and end‑users. The flexible nature of the ribbon reduces strain on solder joints and connector pins, extending the lifespan of the overall assembly. Additionally, the cable is supplied in a pack of five, providing a cost‑effective inventory solution for repair shops, hobbyists, and OEMs who need multiple units for testing, prototyping, or batch production.
Quality control is a cornerstone of uxcell’s manufacturing process. Each cable undergoes rigorous testing for continuity, insulation resistance, and dimensional accuracy before it leaves the factory. This commitment to reliability is reflected in the product’s strong customer rating of 4.1 stars out of 5, based on 49 verified reviews, and its ranking as #40 in the Flat Ribbon Cables sub‑category on major e‑commerce platforms.
Usage
The uxcell Flexible Flat Cable is suited for a broad spectrum of applications. In LCD televisions, it serves as the primary link between the main board and the display panel, transmitting video signals with minimal loss. For DVD players, the cable connects the drive’s control circuitry to the user interface, ensuring smooth playback and reliable data transfer. Laptop manufacturers rely on this cable to bridge the motherboard to the screen, keyboard, or touchpad, where its thin profile helps maintain a slim chassis design.
DIY enthusiasts and repair technicians also benefit from the cable’s versatility. Its reinforced stiffeners allow for quick and secure insertion into standard FFC connectors without the need for specialized tools, reducing downtime during troubleshooting or component replacement. The cable’s heat resistance makes it suitable for environments where occasional temperature spikes occur, such as during soldering or in devices that generate moderate internal heat.
Because the cable is supplied in a five‑piece pack, users can keep spares on hand for future maintenance or use the extra lengths for prototyping new projects. Whether you are building a custom camera module, upgrading a portable media player, or designing a compact IoT device, the uxcell 20‑pin FFC provides a dependable, space‑saving interconnect solution.
Why Choose Us
Choosing uxcell means selecting a brand that prioritizes both performance and affordability. Our Flexible Flat Cable is manufactured using high‑quality copper conductors and a durable polymer film that meets industry standards for signal integrity and mechanical resilience. The reinforced stiffeners at each end are a distinctive feature that reduces the risk of connector damage, a common pain point in high‑frequency ribbon cable installations.
We stand behind every product with a comprehensive quality assurance program. Each batch undergoes electrical testing, dimensional verification, and visual inspection to ensure that the cable meets the exact specifications advertised. This rigorous process translates into a lower return rate and higher satisfaction for customers who depend on reliable interconnects for critical applications.
In addition to product quality, uxcell offers responsive customer support and a clear warranty policy. If you encounter any issues, our technical team is ready to provide guidance on proper installation, troubleshooting, and compatibility questions. This level of service, combined with competitive pricing, makes uxcell a trusted partner for both large‑scale manufacturers and individual makers.
Key Features
- Precise 0.5 mm pitch and 20‑pin layout for high‑density connections
- Reinforced stiffeners on each end simplify insertion and protect conductors
- Durable polymer film substrate offers flexibility and heat resistance up to 80 °C

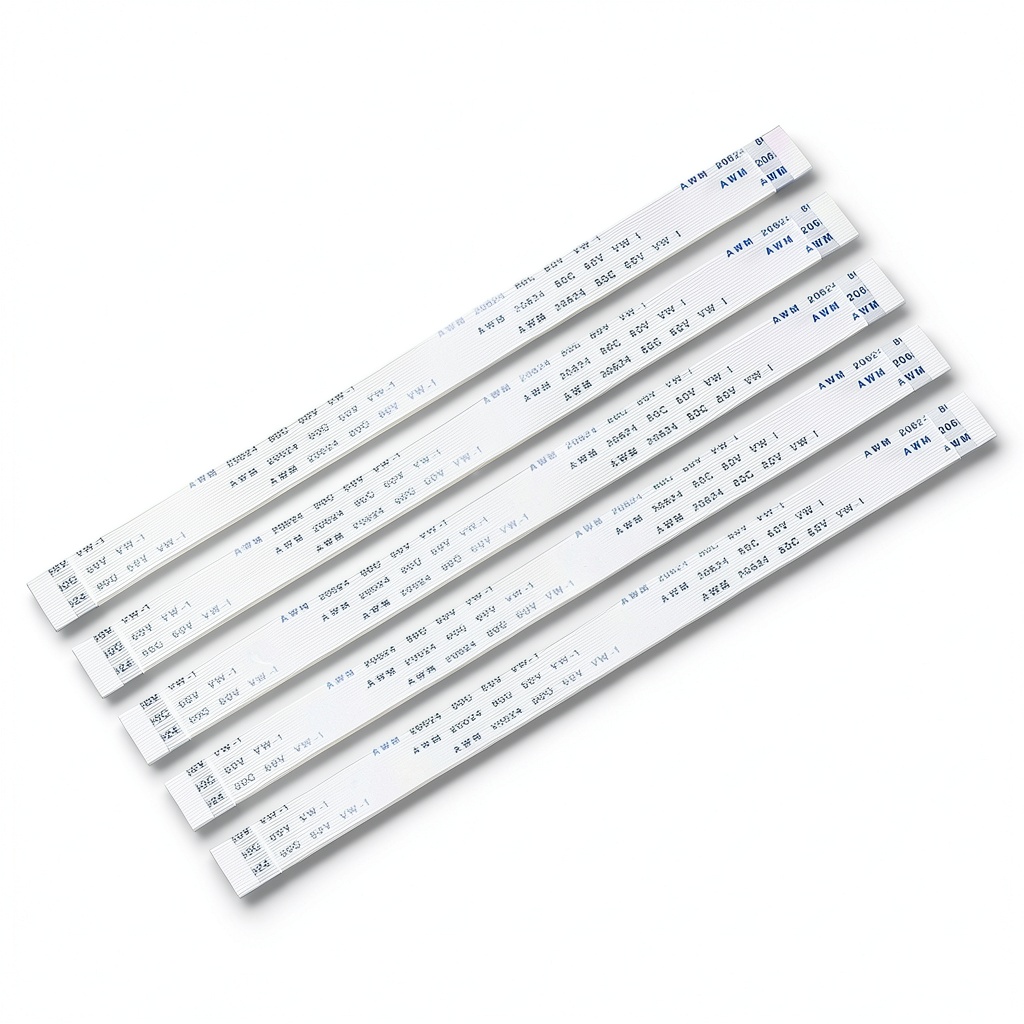

- Comes in a pack of five, providing cost‑effective spares for repairs and prototyping
- Responsive customer support and warranty ensure peace of mind after purchase
FAQ
What devices are compatible with this 20‑pin 0.5 mm pitch cable?
The cable is compatible with any device that uses a standard 0.5 mm pitch FFC/FFC connector, including LCD TVs, DVD players, laptops, digital cameras, and many other consumer electronics that require a flat, flexible interconnect.
How do I install the cable without damaging the connectors?
Begin by aligning the pins on the cable with the corresponding slots in the connector. The reinforced stiffener on each end provides a firm edge that can be gently pushed into the connector until it clicks into place. Avoid applying excessive force; the stiffener is designed to guide the cable smoothly while protecting the delicate conductors.
Can this cable handle higher voltage or current requirements?
The cable is rated for a dielectric strength of 60 V and is suitable for typical signal and low‑power applications found in consumer electronics. For higher voltage or current needs, a cable with a higher rating should be selected.
Is the cable suitable for high‑frequency data transmission?
Yes, the uniform spacing of the 20 copper conductors and the low‑capacitance polymer film substrate support reliable high‑frequency signal transmission, making it appropriate for video, data, and control signals in many modern devices.
What warranty does uxcell provide for this product?
uxcell offers a one‑year limited warranty covering manufacturing defects. If the cable fails due to a defect within this period, we will replace it or provide a refund, subject to verification of the issue.
