Description
Product Overview

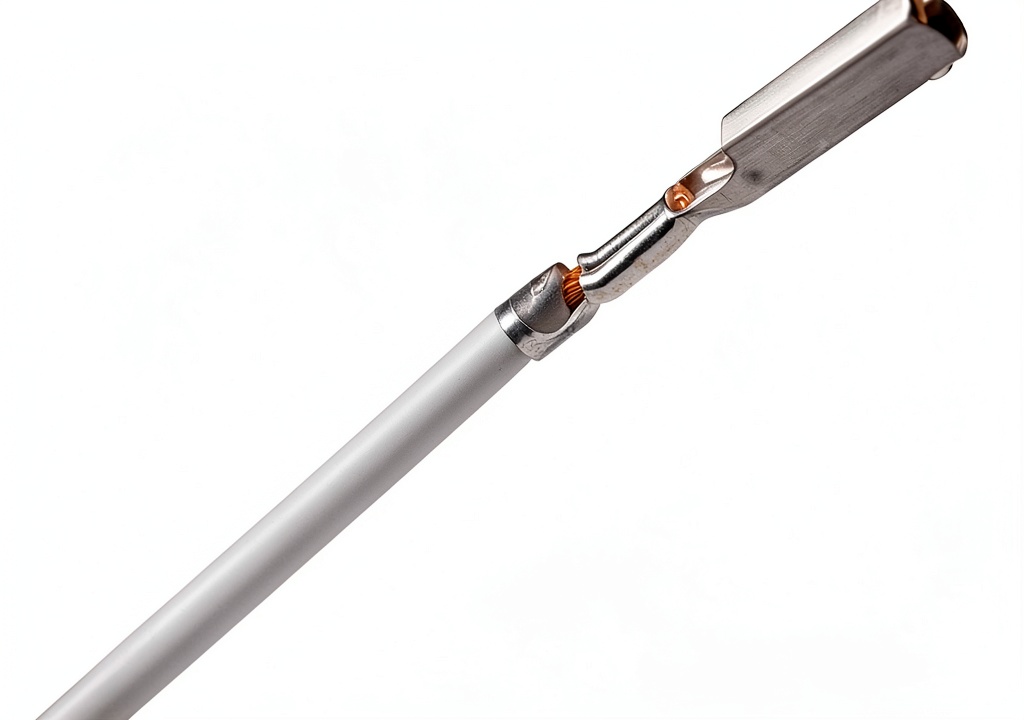

The Molex 33467-0005 automotive connector contact is engineered to meet the rigorous demands of modern vehicle wiring systems and industrial equipment. Constructed from high‑grade copper alloy with a tin‑plated finish, the contact delivers excellent conductivity while resisting corrosion caused by moisture, chemicals, and temperature fluctuations. Its 18‑20 AWG rating accommodates a wide range of wire gauges commonly used in automotive harnesses, ensuring a snug fit that minimizes resistance and voltage drop. The crimp‑ready design features a precision‑molded socket that aligns the wire strands for uniform pressure distribution during installation, reducing the risk of wire damage or incomplete connections. With a compact footprint and a low profile, the contact integrates seamlessly into tight spaces found in engine bays, dashboards, and control panels, allowing designers to maximize routing efficiency without sacrificing performance. The part number 33467-0005 reflects Molex’s systematic cataloging, making it easy for engineers and procurement specialists to locate the exact component in large inventories. Each unit weighs only 0.01 ounces, contributing negligible mass to the overall assembly, which is critical for weight‑sensitive applications such as electric vehicles and aerospace‑grade equipment. The product complies with industry standards for automotive electrical components, offering reliability that aligns with the expectations of OEMs and aftermarket installers alike. In addition, the contact’s robust mechanical properties enable it to withstand vibration, shock, and repeated mating cycles, extending service life even in harsh operating environments. The Molex brand, recognized globally for its commitment to quality and innovation, backs this connector with comprehensive technical support and documentation, ensuring that users have access to the resources needed for successful integration. Whether used in a new vehicle design or as a replacement part in legacy systems, the 33467-0005 contact provides a dependable solution that balances performance, durability, and ease of installation.
The contact’s design also incorporates a self‑locking mechanism that secures the wire after crimping, preventing accidental disengagement during service or under dynamic loads. Its compatibility with standard Molex crimp tools simplifies the assembly process, reducing labor time and minimizing the need for specialized equipment. Moreover, the component meets RoHS compliance, ensuring that it is free from hazardous substances and suitable for environmentally conscious projects. The robust plating not only enhances conductivity but also provides a protective barrier against oxidation, extending the functional lifespan of the connection even in high‑humidity climates. Engineers appreciate the clear labeling and consistent dimensions, which facilitate automated manufacturing lines and improve overall production yield. The contact’s low profile also enables it to be used in tight conduit runs where space is limited, and its reliable locking action reduces the likelihood of intermittent connections caused by vibration. For diagnostic purposes, the connector can be quickly removed and re‑installed, allowing technicians to isolate faults without compromising the integrity of the surrounding wiring. Its proven track record in OEM applications further validates its suitability for high‑volume production, where consistency and repeatability are critical. Overall, the ease of installation and robust performance make the 33467-0005 a preferred choice for both new builds and retrofit projects.
Usage
The Molex 33467-0005 contact is ideally suited for a variety of automotive and industrial wiring applications where reliable electrical connections are paramount. In passenger vehicles, it is commonly employed in power distribution modules, lighting circuits, sensor interfaces, and infotainment system harnesses, providing a secure link between the vehicle’s electronic control units and peripheral devices. Its 18‑20 AWG compatibility aligns with the gauge specifications of most automotive wiring, enabling seamless integration without the need for additional adapters or converters. For heavy‑duty trucks and commercial fleets, the contact’s robust construction tolerates the higher current demands and harsher operating conditions typical of these platforms, ensuring consistent performance even under extreme temperature swings and vibration. In industrial settings, the connector is frequently used in control panels, motor drives, and automation equipment, where its compact size allows for efficient panel layout while its crimp‑ready design simplifies field installation and maintenance. Technicians appreciate the straightforward crimp process, which can be completed with standard Molex or compatible crimping tools, reducing assembly time and minimizing the potential for human error. The contact’s tin‑plated finish also offers excellent resistance to corrosion, making it a reliable choice for outdoor installations or environments with high humidity. When used in aerospace or marine applications, the component’s compliance with RoHS and its low outgassing properties help meet stringent regulatory requirements, while its proven durability supports long‑term mission reliability. Additionally, the contact’s design facilitates easy inspection and testing; visual verification of proper crimping is possible through the clear socket geometry, and continuity testing can be performed without disassembly. This feature is especially valuable in quality‑controlled manufacturing lines where rapid verification is essential. Overall, the Molex 33467-0005 provides a versatile solution that adapts to the needs of automotive manufacturers, aftermarket service providers, and industrial equipment designers, delivering dependable connectivity across a broad spectrum of use cases.
Beyond standard vehicle wiring, the 33467-0005 is also effective in auxiliary systems such as battery management, electric power steering, and advanced driver‑assistance sensors, where reliable signal transmission is critical. Its ability to handle both power and signal lines makes it a flexible choice for mixed‑signal applications, reducing the need for multiple connector types. In retrofit scenarios, the contact can be used to upgrade older harnesses to meet contemporary performance standards, offering a cost‑effective path to extend the service life of legacy equipment. The connector’s straightforward crimping process allows field technicians to perform repairs on‑site, minimizing vehicle downtime and enhancing customer satisfaction. Moreover, the component’s compliance with automotive safety standards ensures that it meets the stringent requirements for electromagnetic compatibility (EMC) and insulation resistance, contributing to overall vehicle safety and reliability.
Why Choose Us
The Molex brand stands for over six decades of expertise in electrical and electronic connectivity, and the 33467-0005 contact embodies that legacy of quality and innovation. Choosing this component means benefiting from Molex’s rigorous testing protocols, which include thermal cycling, vibration, and corrosion resistance assessments to guarantee performance under the most demanding conditions. Each contact is manufactured in a controlled environment using precision stamping and plating processes that ensure dimensional consistency and surface integrity across every batch, reducing variability and enhancing overall system reliability. Molex provides comprehensive technical documentation, including detailed specifications, installation guidelines, and cross‑reference tools, enabling engineers to quickly verify compatibility and streamline the design process. In addition, the company offers responsive customer support staffed by experienced application engineers who can assist with custom solutions, troubleshooting, and optimization advice, ensuring that any challenges encountered during development are promptly addressed. The 33467-0005 also benefits from Molex’s extensive global distribution network, which ensures rapid availability and consistent supply chain performance, a critical factor for manufacturers operating on tight production schedules. Sustainability is another pillar of Molex’s commitment; the contact complies with RoHS directives and is produced using environmentally responsible manufacturing practices, aligning with the growing demand for green electronics. Moreover, the component’s design incorporates a self‑locking mechanism that secures the wire after crimping, reducing the risk of accidental disengagement and extending service life, which translates into lower maintenance costs for end users. By selecting the Molex 33467-0005, partners gain a trusted solution that delivers high electrical performance, mechanical durability, and ease of integration, backed by a brand that prioritizes continuous improvement and customer success.
Furthermore, the 33467-0005 is certified to meet ISO 9001 quality management standards, reflecting Molex’s dedication to consistent production excellence. The component also carries a limited warranty that covers material defects, providing additional peace of mind for manufacturers who require long‑term reliability. Field engineers have reported that the contact’s low insertion force simplifies assembly on crowded printed circuit boards, reducing the chance of board damage during installation. Its compatibility with a wide range of crimping tools means that production lines can adopt the part without significant retooling, saving both time and capital investment. In addition, Molex’s online design resources include 3D models and CAD libraries, enabling seamless integration into electronic design automation (EDA) workflows and facilitating accurate mechanical fit checks before physical prototyping. This level of support accelerates time‑to‑market and helps reduce overall development costs. The combination of rigorous testing, comprehensive documentation, and proactive customer service makes the Molex 33467-0005 a strategic choice for companies seeking to enhance product reliability while maintaining cost efficiency.
Molex’s commitment to continuous improvement is reflected in the ongoing refinement of the 33467‑0005 design, incorporating feedback from field applications to enhance ease of use and performance. The connector’s material selection adheres to stringent environmental standards, utilizing lead‑free alloys and recyclable packaging to reduce ecological impact. For large‑scale manufacturers, Molex offers volume pricing tiers and supply chain visibility tools that integrate with enterprise resource planning (ERP) systems, simplifying procurement and inventory management. Additionally, the company provides training programs and webinars that keep engineering teams up‑to‑date on best practices for crimping techniques and connector selection, fostering a collaborative partnership that extends beyond the point of sale. This holistic approach ensures that customers not only receive a high‑quality component but also benefit from a network of expertise that supports product development from concept through production.
Key Features
- High‑grade copper alloy with tin plating ensures superior conductivity and long‑term corrosion resistance for dependable performance in harsh automotive environments, while maintaining low contact resistance across a wide temperature range.
- Precision‑molded socket provides uniform crimp pressure, guaranteeing a secure wire grip that minimizes resistance and prevents loosening under vibration, even after repeated thermal cycles and mechanical stress.
- Compact low‑profile design fits tight spaces in vehicle harnesses and control panels, enabling efficient routing without sacrificing strength, and simplifies panel layout for complex electrical architectures.
- Self‑locking mechanism secures the wire after crimping, reducing the risk of accidental disengagement and extending service life, which translates into lower maintenance costs for end users.
- Backed by Molex’s global support and comprehensive documentation, including 3D CAD models and technical assistance, for easy integration and rapid troubleshooting, ensuring engineers can quickly resolve issues and maintain production schedules.
FAQ
What wire gauge range is compatible with this contact?
The 33467-0005 is rated for 18‑20 AWG solid or stranded wires, providing a secure crimp for both power and signal applications.
Is the contact suitable for high‑temperature environments?
Yes, the tin‑plated copper construction is rated for operation up to 105 °C, making it appropriate for engine compartments and other high‑heat locations.
Can the 33467-0005 be used with insulated wires?
Yes, the contact is compatible with standard insulated 18‑20 AWG wires; after crimping, the insulation can be trimmed or left in place, and a heat‑shrink sleeve can be applied for added protection.
What tools are recommended for crimping this contact?
Molex recommends using a calibrated crimping tool that matches the 33467‑0005 specifications, such as the Molex CrimpPro series, to achieve the proper compression force and ensure a reliable connection.
Does this connector meet RoHS and other environmental standards?
Yes, the contact complies with RoHS directives and is manufactured using lead‑free materials, supporting environmentally responsible designs.
Reviews
There are no reviews yet.
