Product Overview

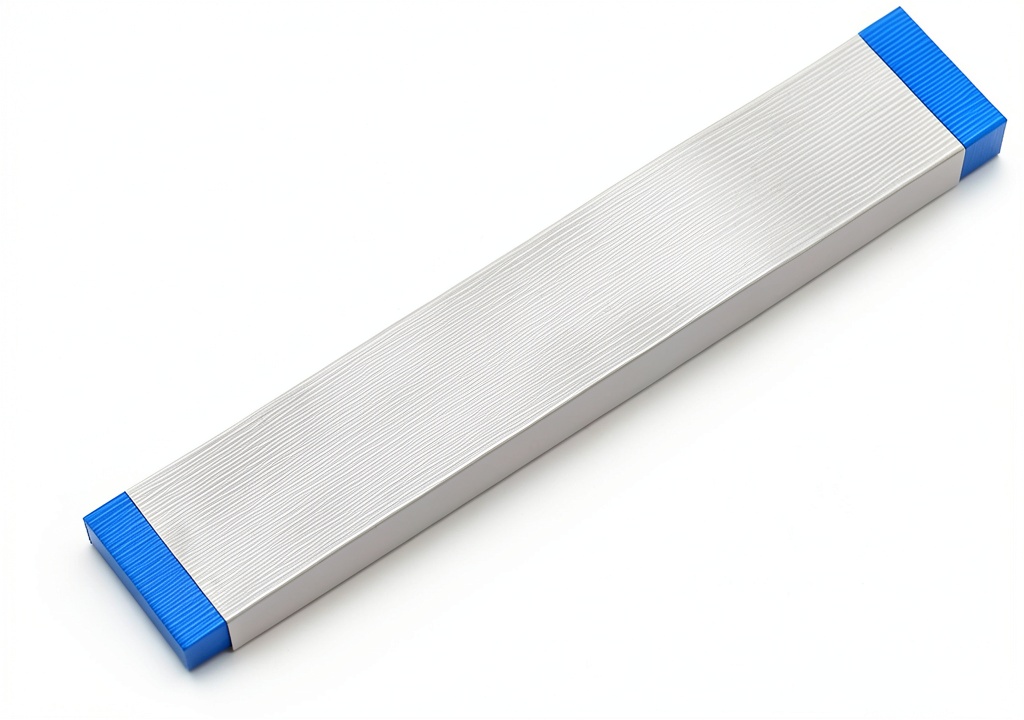

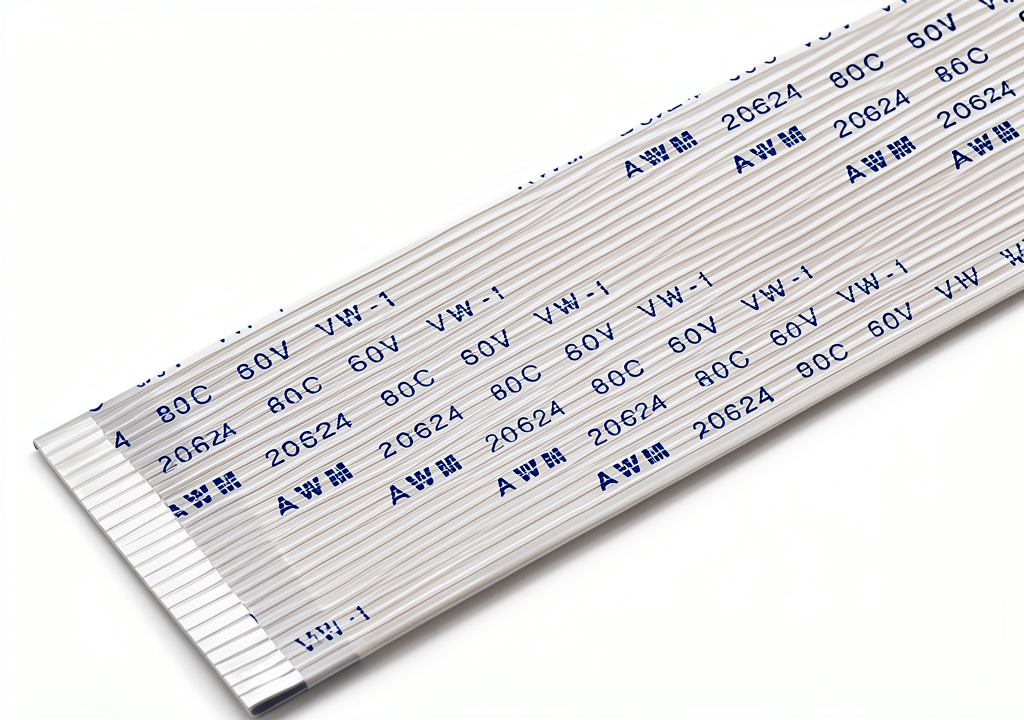

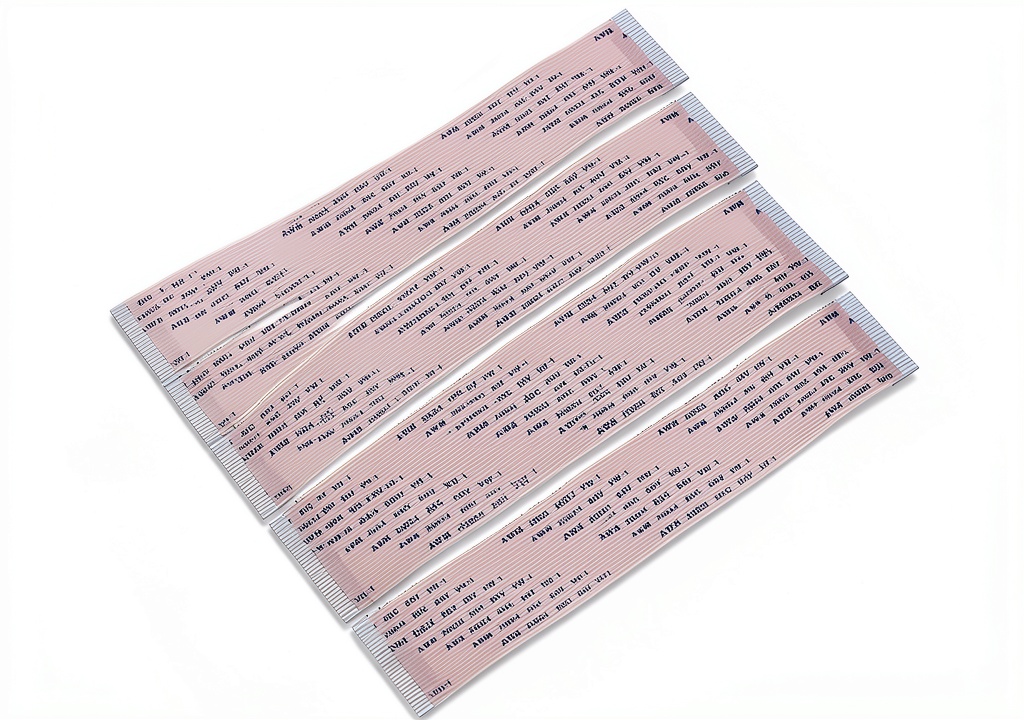

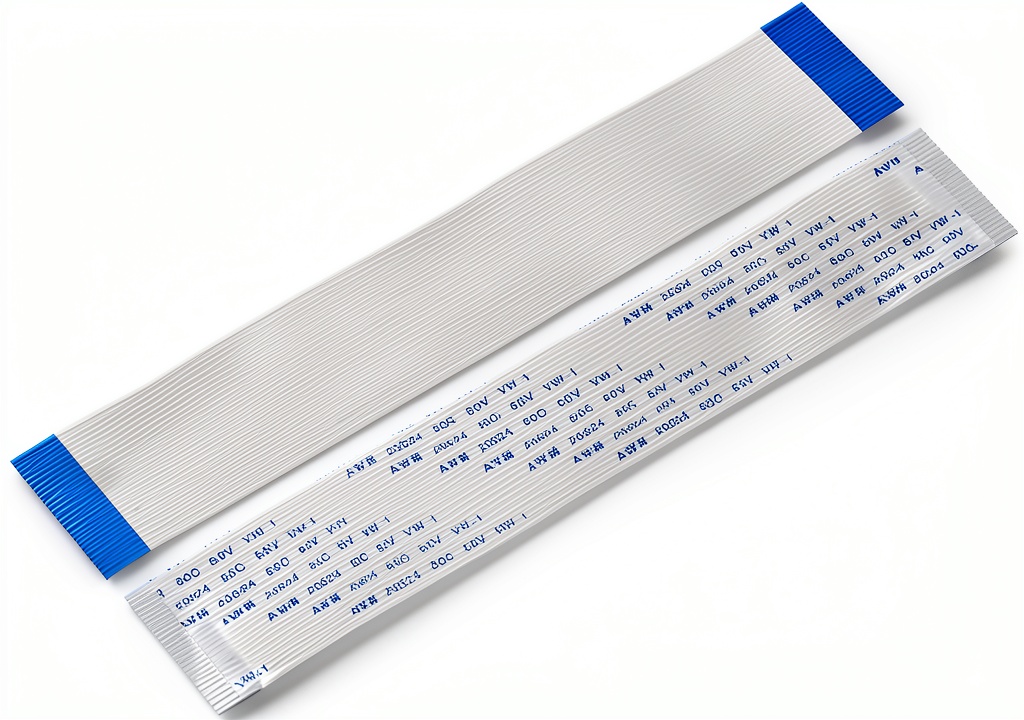

The uxcell Flexible Flat Cable is engineered to meet the demanding requirements of modern electronic assemblies. Measuring 150mm in length with a 1mm pitch, this 26‑pin FFC (Flexible Flat Cable) offers a compact, low‑profile solution for high‑density connections. Constructed from a durable polyimide film base, the cable features a single layer of precisely spaced copper conductors that provide reliable signal transmission while maintaining flexibility. Each end of the cable is reinforced with a stiffener, making insertion into connectors straightforward and reducing the risk of damage during assembly. The cable is rated for up to 60 volts, ensuring safe operation across a wide range of consumer electronics, including LCD televisions, DVD players, laptops, and other devices that require a thin, reliable interconnect.
Usage
Designed for a variety of applications, this flexible flat cable excels in environments where space is at a premium. It is ideal for connecting display panels in LCD TVs and monitors, linking internal components in DVD players, and providing data pathways in laptops and tablets. The cable’s thin profile and high flexibility allow it to be routed through tight chassis, making it a perfect choice for DIY hobbyists building custom rigs or repairing existing equipment. Its 60V voltage rating also makes it suitable for low‑power industrial control panels and other electronic modules that demand a reliable, space‑saving interconnect.
Why Choose Us
Choosing the uxcell Flexible Flat Cable means opting for quality and reliability. Each cable undergoes rigorous testing to ensure consistent performance, including dielectric strength verification and heat resistance up to 80°C. The reinforced stiffeners at each end guarantee easy insertion and long‑term durability, even in applications that involve frequent disassembly. uxcell’s commitment to customer satisfaction is reflected in responsive after‑sales support, detailed product documentation, and a robust warranty that protects your investment.
Key Features
- Ultra‑thin 150mm length fits into the smallest electronic enclosures
- 26 precisely spaced pins with 1mm pitch ensure accurate signal alignment
- Reinforced stiffeners simplify connector insertion and reduce wear
- 60V voltage rating and 80°C heat resistance for reliable operation in demanding environments
- Dedicated uxcell customer support and warranty for peace of mind
FAQ
What devices are compatible with this cable?
The cable works with LCD TVs, DVD players, laptops, digital cameras, camcorders, and any other equipment that uses a 26‑pin FFC connector with a 1mm pitch.
How do I install the cable correctly?
Align the reinforced stiffener with the connector slot, insert the cable gently until it seats fully, and ensure the pins are flush with the connector housing. No additional tools are required.
Is the cable suitable for high‑temperature environments?
Yes, the cable is rated for heat resistance up to 80°C, making it suitable for devices that may experience elevated temperatures during operation.
Can I use this cable for DIY projects?
Absolutely. Its flexible design and easy‑to‑handle stiffeners make it a favorite among hobbyists building custom electronics or repairing existing hardware.
What warranty does uxcell provide?
uxcell offers a standard one‑year warranty covering manufacturing defects, along with responsive technical support to assist with any installation or performance questions.
