1mm FFC FPC Connector Cable Kit Ssighuyx 150mm Cable 50 Connectors

Description

Product Overview

The 1mm FFC FPC Connector Kit from Ssighuyx is engineered for precision and flexibility in modern electronic assemblies. Featuring a 150mm flexible flat ribbon cable, the kit delivers a reliable, low‑profile interconnect solution that maintains signal integrity across a wide range of applications. The cable is constructed from high‑grade copper conductors with a durable PET insulation, providing excellent resistance to wear, bending fatigue, and environmental stress. Accompanying the cable are 50 premium connectors, meticulously divided into 4, 6, 8, 10, 12, 14, 16, 18, 20, and 24‑pin configurations, allowing users to tailor the connection density to specific project requirements. Each connector incorporates a secure latch mechanism that guarantees a firm, vibration‑resistant connection while enabling effortless insertion and removal during prototyping or maintenance cycles. The kit’s compact dimensions—5.91 x 1.97 x 0.79 inches and a lightweight 3.53 ounces—make it ideal for space‑constrained designs, and its B‑type (SH‑1.0‑RS‑B) interface ensures compatibility with a broad spectrum of industry‑standard devices.

Usage

This connector kit excels in a variety of real‑world environments. In laboratory settings, engineers can rapidly prototype high‑speed data buses, sensor arrays, and control panels, leveraging the kit’s modular pin options to match diverse circuit layouts. For field technicians, the robust latch and flexible cable simplify on‑site repairs of industrial equipment, automotive control units, and medical instrumentation, where quick disconnection and reconnection are critical. Hobbyists and makers benefit from the kit’s DIY‑friendly design, using it to build custom keyboards, LED displays, and wearable electronics that demand thin, reliable interconnects. The 150mm length strikes a balance between reach and manageability, making it suitable for both short‑run board‑to‑board connections and longer cable runs in rack‑mount systems. Additionally, the kit’s compatibility with standard 1mm pitch FFC/FPC interfaces ensures seamless integration with existing hardware, reducing the need for additional adapters or custom tooling.

Why Choose Us

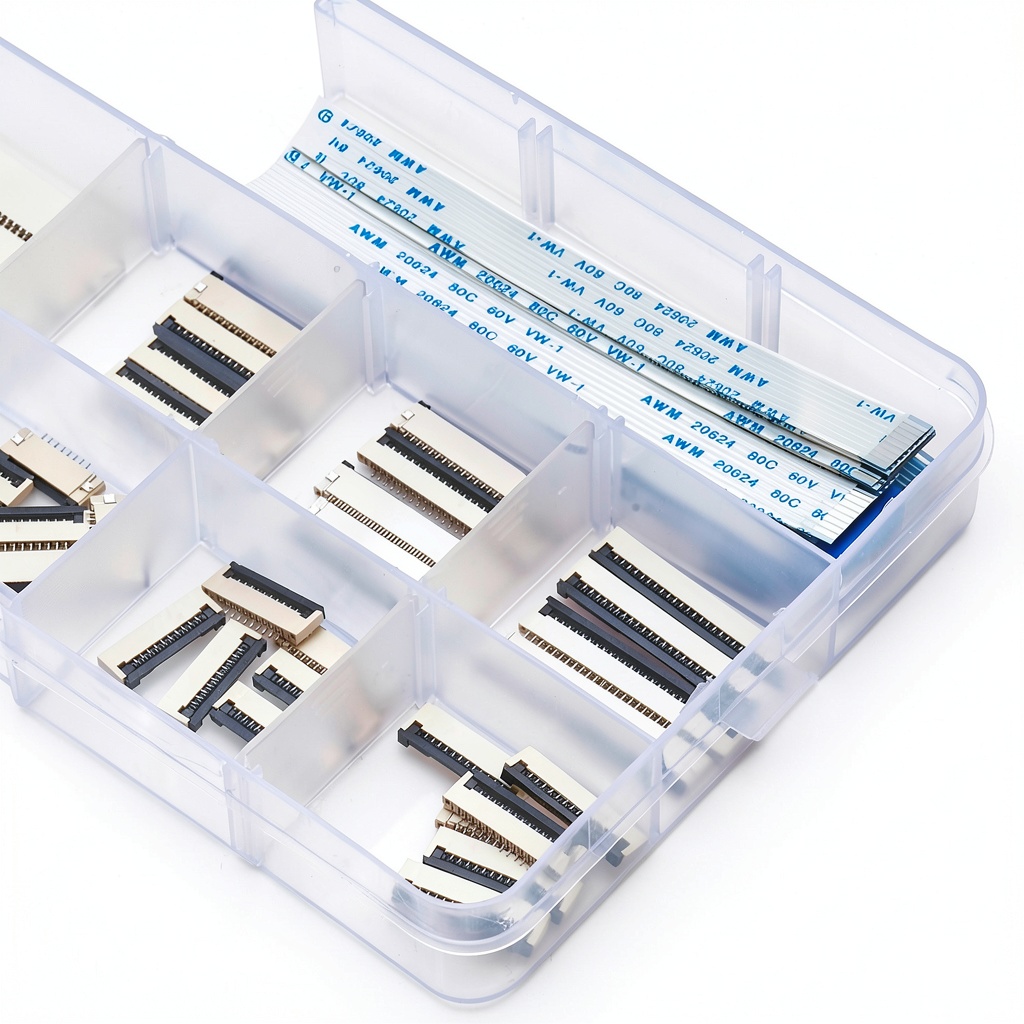

Choosing the Ssighuyx connector kit means investing in quality, reliability, and comprehensive support. Each connector undergoes rigorous testing for contact resistance, insertion force, and durability, guaranteeing performance that meets or exceeds industry specifications. The flexible flat cable is sourced from reputable manufacturers, offering consistent impedance and minimal signal loss, which is essential for high‑frequency data transmission. Our commitment to customer satisfaction is reflected in responsive technical assistance; any questions about compatibility, installation, or troubleshooting are addressed promptly by a dedicated support team. Moreover, the kit’s thoughtful packaging—organized by pin count and clearly labeled—streamlines inventory management and reduces assembly time. With a competitive price point of $19.99, the kit delivers exceptional value without compromising on material standards or manufacturing precision. Whether you are a seasoned professional or a novice builder, the Ssighuyx kit provides the confidence that your connections will perform reliably throughout the product lifecycle.

Key Features

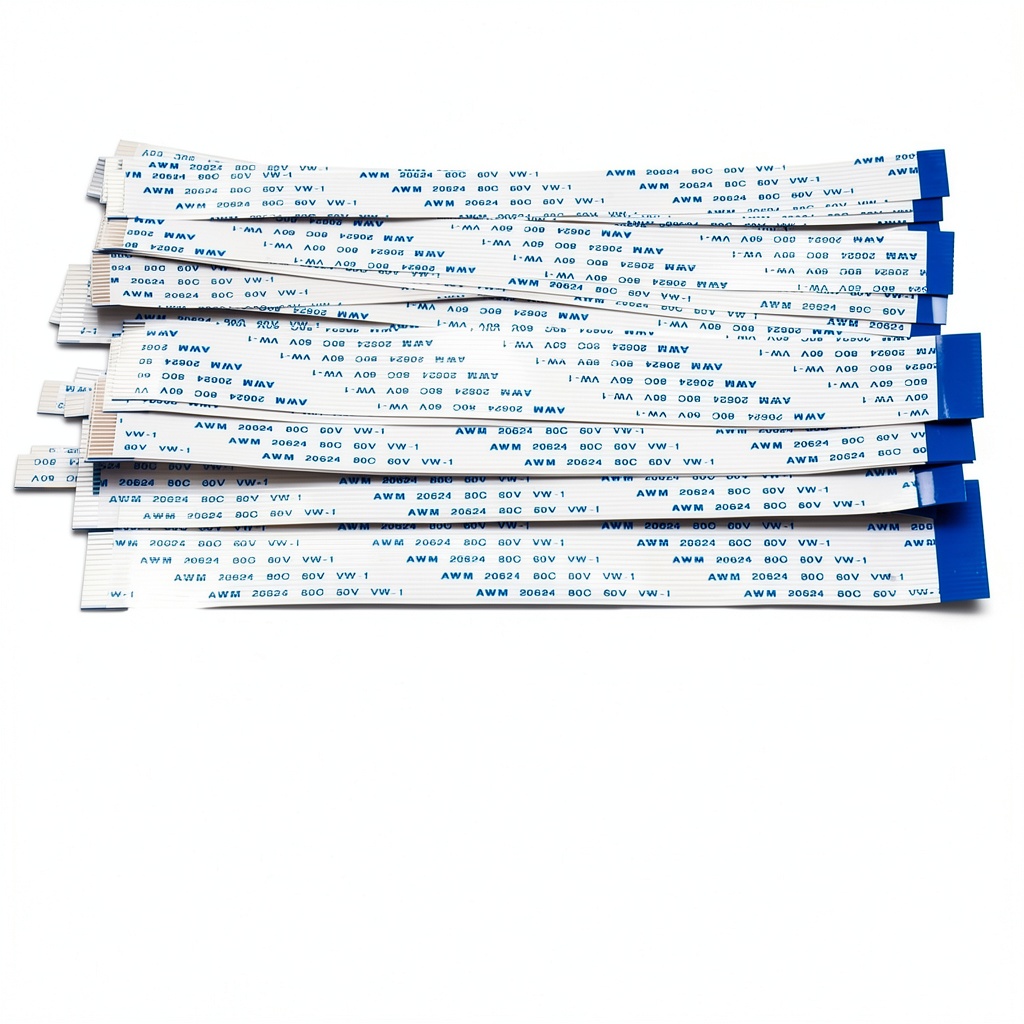

• High‑quality 150mm flexible flat ribbon cable ensures durable, low‑profile connections.

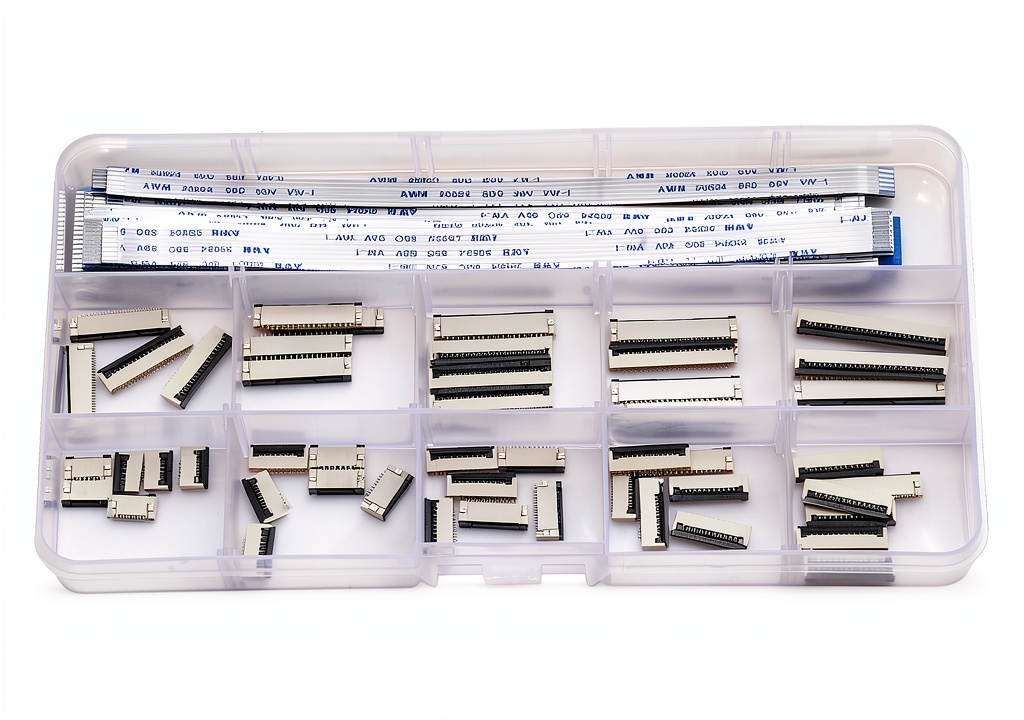

• 50 assorted connectors covering 4‑24 pins give flexibility for diverse circuit designs.

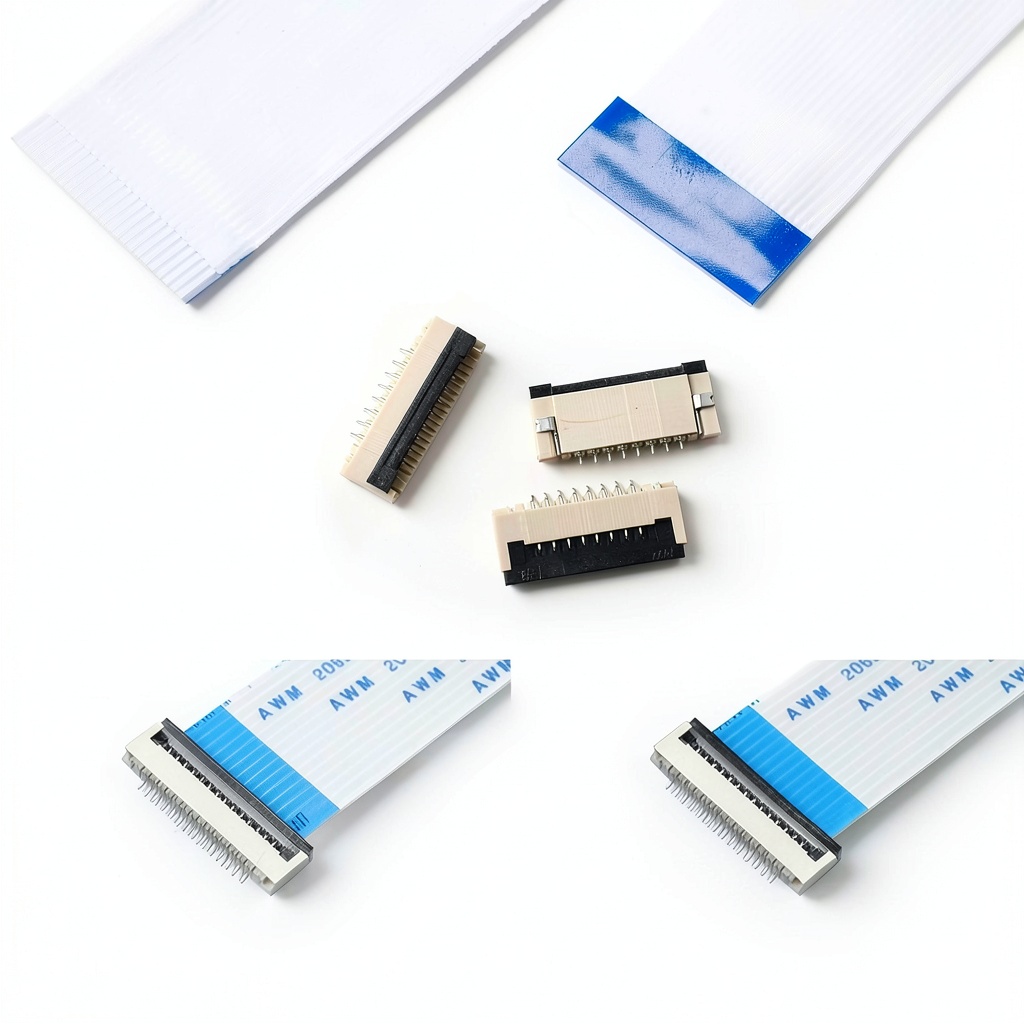

• Secure latch mechanism provides vibration‑resistant connections while allowing easy insertion.
• Compact, lightweight design fits tight spaces and reduces overall system weight.
• Responsive customer support and clear documentation simplify troubleshooting and integration.

FAQ

What pin configurations are included in the kit?

The kit contains connectors for 4, 6, 8, 10, 12, 14, 16, 18, 20, and 24‑pin configurations, allowing you to select the exact match for your application.

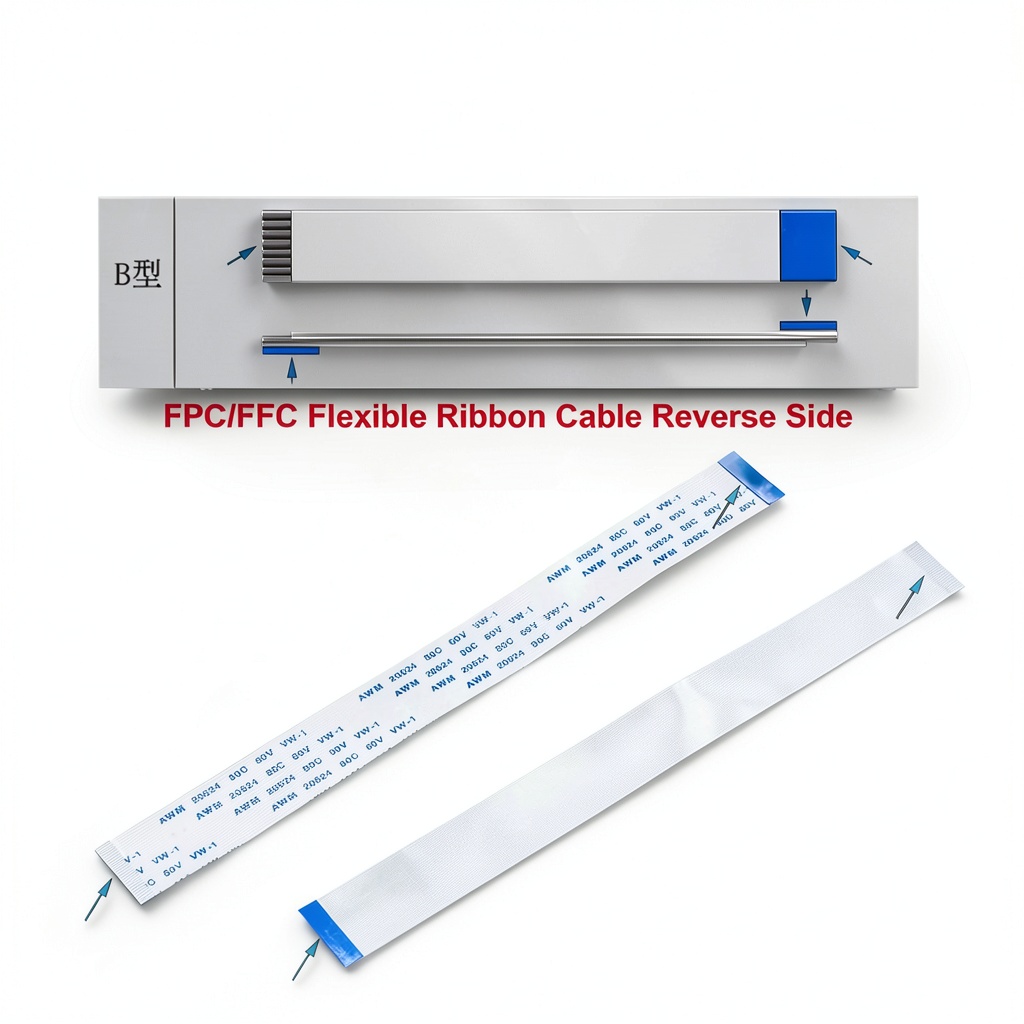

Is the flexible flat cable compatible with standard 1mm pitch FFC/FPC interfaces?

Yes, the cable follows the 1mm pitch (SH‑1.0‑RS‑B) standard, making it fully compatible with most commercial and industrial devices that use this specification.

Can the connectors be reused after removal?

Absolutely. The connectors are designed for repeated insertion and removal, maintaining reliable contact performance throughout multiple cycles.

What is the recommended method for terminating the cable?

We recommend using a precision alignment tool or a flat‑bed cutter to ensure clean cuts, followed by gentle insertion of the connector until the latch clicks securely.

How does the kit support DIY projects?

The variety of pin counts and the flexible length of the cable make it ideal for hobbyist projects such as custom keyboards, LED matrices, and wearable electronics, where space and adaptability are crucial.
